4G Static 5MP Camera Setup Instructions

Printable Instuctions

Step 1

Check your box for:

1 x 4G Static 5MP camera
2 x Antennas
1 x 3-pin plug adapter
1 x Screw pack (not pictured)
1 x Giffgaff SIM

Step 2

Antenna Attachment:

A. Carefully attach the two antennas to the camera and screw securely into place.

Step 3

Activating SIM card:
Steps below are specific to a giffgaff SIM, if using a SIM card from a different network provider, please contact them for activation details.
A. Using a mobile phone, download the giffgaff app.
B. Open the giffgaff app and select ‘Activate SIM’ (you will then be redirected to a web browser page).
C. Enter the activation code which is the 6 digit code written on the plastic SIM card holder.
D. Select to activate SIM and enter your personal details.
E. Select to register.
F. Either add credit or select a goodybag option. We recommend starting with the £10 goodybag.
G. Fill in the required payment details and select to activate your SIM.

Step 4

Inserting SIM card & Micro SD card (Micro SD card optional):
A. Remove the back access panel using the allen key provided in the screw pack.
B. Insert the SIM card and Micro SD card (if using) as shown below. Each of these should gently click into place.
C. Replace the access panel taking care to ensure it is securely fastened for moisture resistance.

Step 5

Power on your new camera:

A. Connect your power lead to the power cable coming out the back of the camera as shown below. If you are powering your camera via mains, use the 3-pin plug adapter included in the camera box. If you are powering your camera via 12V, use the accessory 12V battery connection cable instead.
B. Connect the other end of the adapter/12V battery cable to mains/12V battery.

Step 6

Connecting your camera to the CamHipro app:

A. Use your mobile phone to access the App / Google Play store and download a free app called ‘CamHipro’.
B. Once downloaded, open CamHipro and give it full permissions.
C. The following steps can now be used to connect your 4G Static to the CamHipro app:

1. Open CamHipro and select ‘Add Camera’

2. Select ‘IP Camera’

3. Select ‘Device in Use’

4. Select ‘Scan QR code’ and scan the QR code on the side of the camera

5. Select ‘Add to’

6. Name your camera and select ‘confirm’

7. Wait for 10-15 seconds for your camera to connect

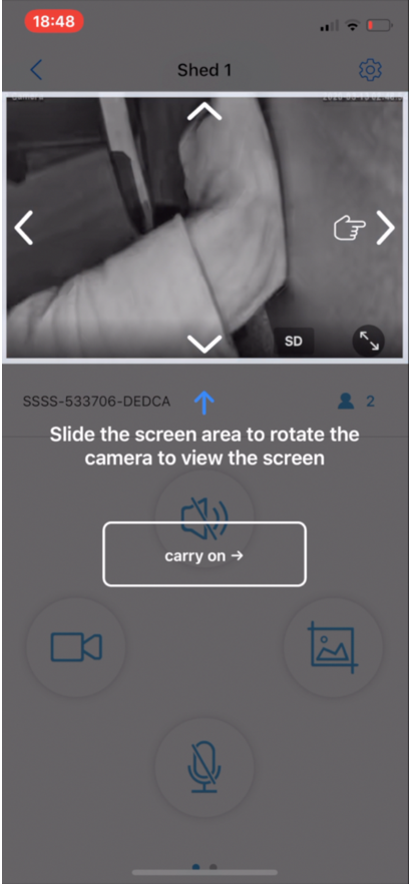

8. Follow the tutorial

Your 4G Static Camera is now setup, and you’ll be able to view footage wherever you are using your mobile phone. Feel free to unplug your camera and mount it where you want to use it, before reconnecting to power.

Any questions regarding setup? Drop us an email at support@farmstream.co.uk , including your order number and a brief description of the problem, so we can get the best person to help figure out what is going on.
